Which Aico Alarms are Compatible with the SmartLINK Gateway?

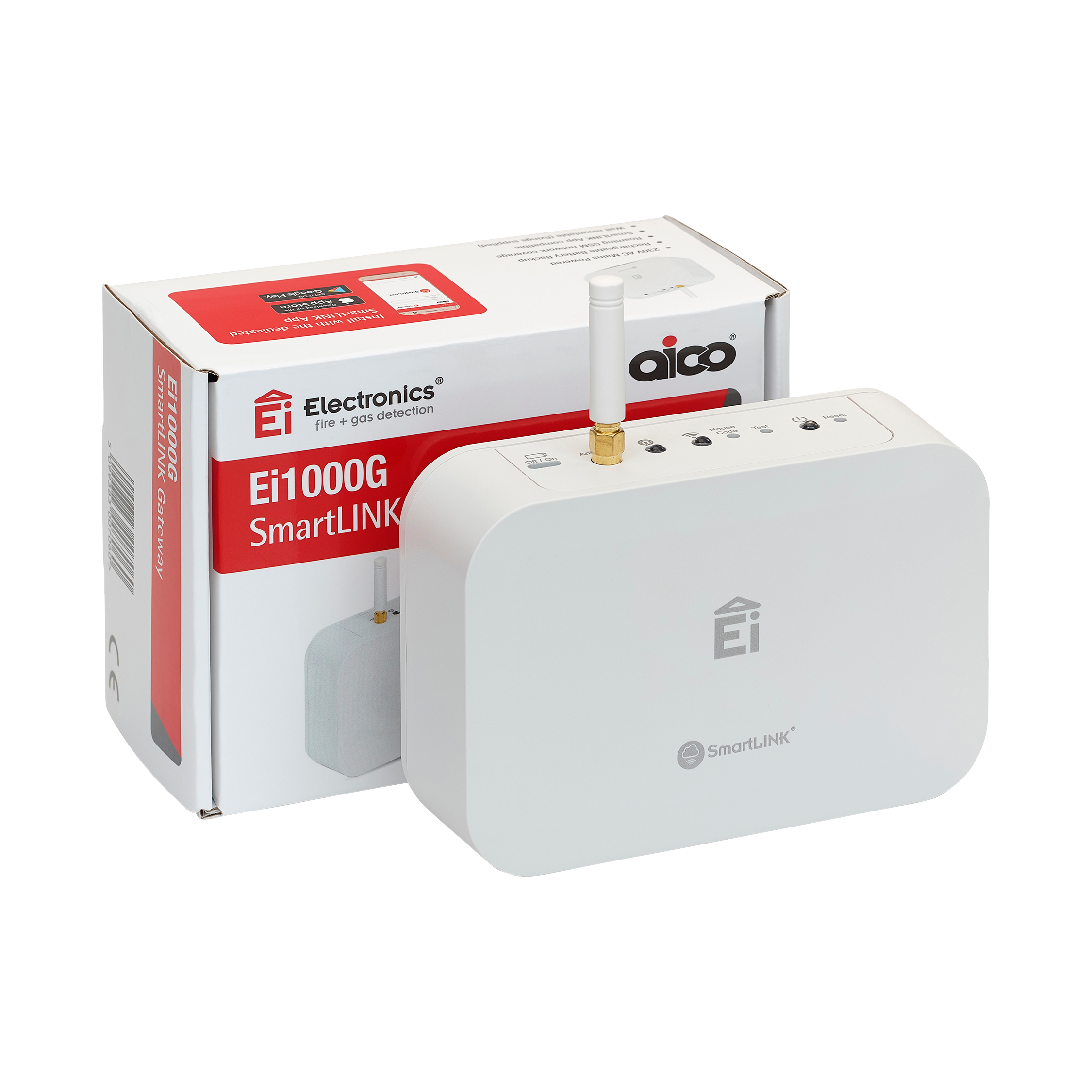

The SmartLINK Gateway is designed for use with the Aico Radio Frequency (RF) devices. It provides a mechanism to transfer information from the Radio Frequency network to a portal over the GSM network.

Data & Security

To ensure the safety of the data, it is encrypted in both directions during transmission using AES128 encryption. In addition, for ease of installation, the SmartLINK App (available on Android & iOS) provides a step by step guide for the installation of the Gateway and the Aico RF devices.

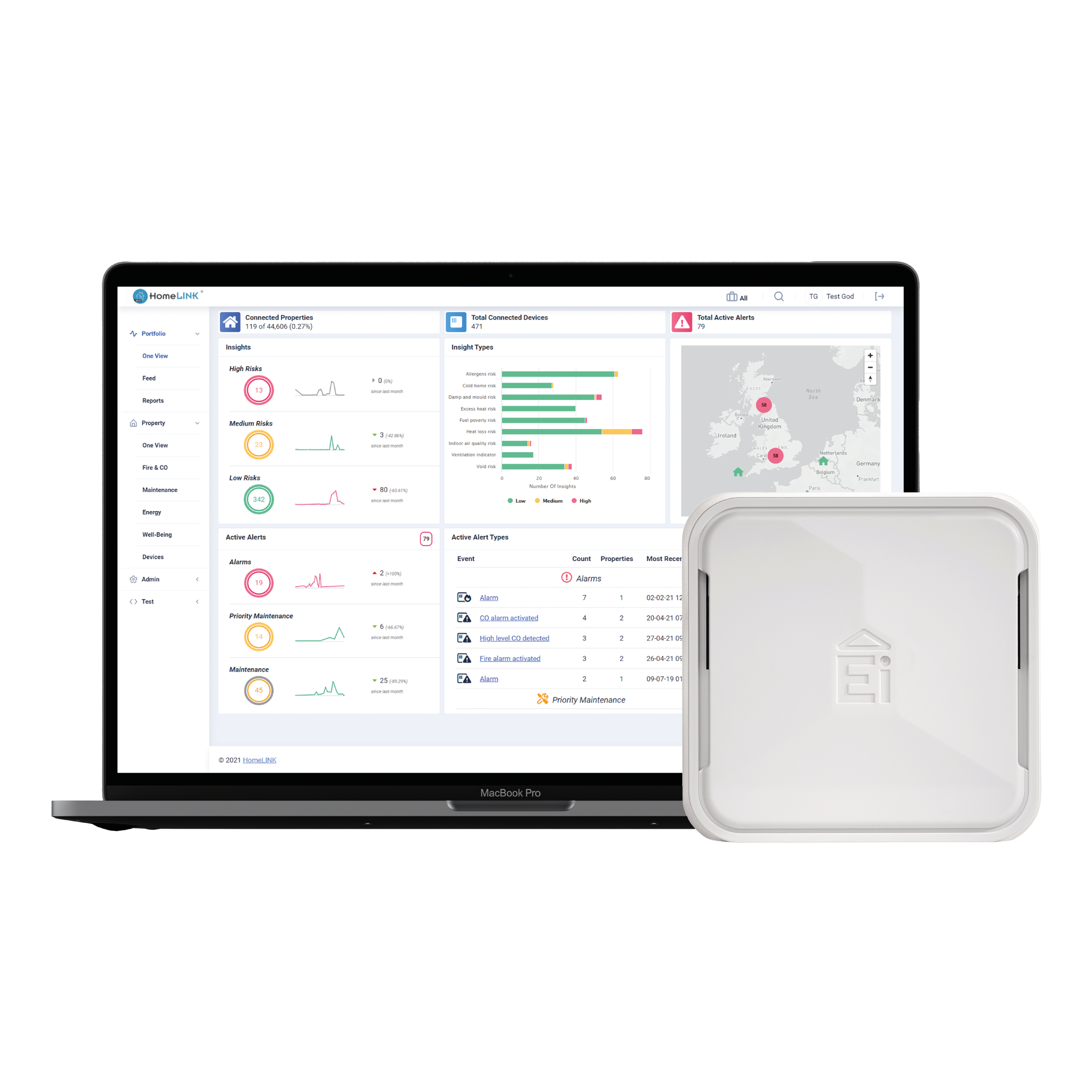

All data sent is accessible from a web portal where alerts can be set up to be delivered by email or SMS. Reports can also be run from the web portal to facilitate the management of the Alarms fitted. The data on the portal is securely stored and is only available to the associated client.

What alarm events does the Gateway report?

What alarm events does the Gateway report?

• Fire Alarm
• CO level detected (High, Medium, Low)
• Button Test
• Mains Absent Fault
• Head OK
• Head Removed
• End of life

• Product Life: 10 years
• Supply Voltage: 230V AC, 50Hz
• Battery back-up: Rechargeable battery
• Power consumption: 40mA
• RF frequency: 868MHz band (1% duty cycle)
• RF Range: > 100 Metres in free air
• RF Protocol type: Mesh architecture
• RF Protocol: SmartLINK
• RF System size: Up to 12 RF devices
• Data upload: via 2G GSM network (Roaming SIM card supplied)

• Modem: Quad-Band GPRS modem
• Data storage: Cloud based

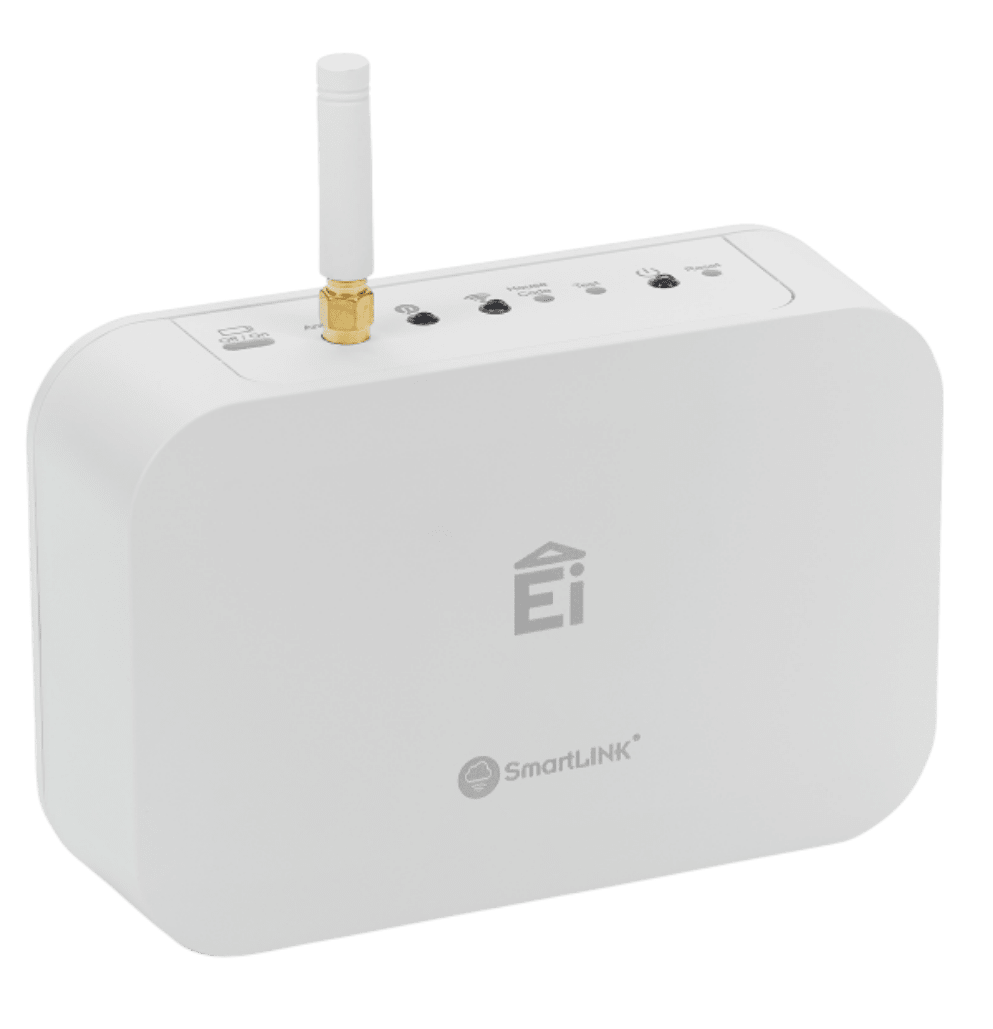

• Indicators: Green LED – Power
• Blue LED – RF communication
• Yellow LED – GSM communication
• Normal Operating and Storage Temperature Range: -10°C to 40°C
• Normal Operating and Storage Humidity Range: 15 % to 95 % Relative Humidity (non condensing)
• Dimensions: Product – 175mm x 124mm x 81mm
• Weight: 550g
• Warranty: 5 years
